Quick Details
Type: Bare
Application: Heating
Conductor Material: Aluminum
Conductor Type: Stranded
Insulation Material: PE
- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
Type: Bare
Application: Heating
Conductor Material: Aluminum
Conductor Type: Stranded
Insulation Material: PE

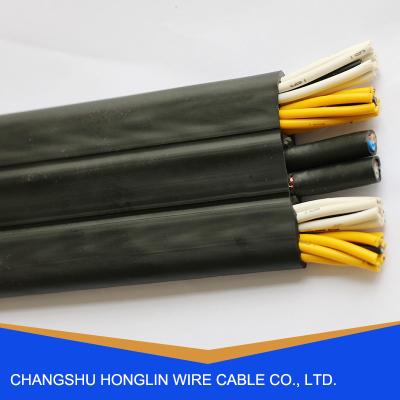

Product Description specification Construction designed according to VDE 0281 part 403 and part 404 Packaging & Delivery
Delivery Detail: Shipped in 10 days after payment
Conductor: plain CU wires ,flexible
Insulation:Core insulation of PVC,compound type T12 according to VDE
0207 part 4
Steel wire can be attached
Sheath*:Sheath material of PVC,compound type TM2 according to VDE 0207
part 5 Sheath wall thickness: according to the table3
Rated voltage
H05VVH6 U0/U=300/500V
H07VVH6 U0/U=450/750V NO.of cross section (n.*mm²) aqqrpx.cable OD (mm*MM) Copper weight(kg/km) cable weight (kg/km) H05VVH6-F 4G 0.75 4.2*12.6 29 100 8G 0.75 4.2*23.2 58 178 12G 0.75 4.2*33.8 86 265 18G 0.75 4.2*50.2 130 385 24G 0.75 4.2*65.6 172 492 H05VVH6-F 4G 1 4.4*13.4 38 108 5G 1 4.4*15.5 48 129 8G 1 4.4*24.8 77 207 8G 1 4.4*24.8 77 207 12G 1 4.4*36.2 115 305 18G 1 4.4*53.8 208 455 24G 1 4.4*70.4 230 588 H07VVH6-F 4G 1.5 5.2*14.5 58 135 4x 1.5 5.2*14.5 58 135 5G 1.5 5.2*17.5 72 162 7G 1.5 5.2*25.3 101 234 8G 1.5 5.2*25.3 115 257 10G 1.5 5.2*27.3 144 325 10x 1.5 5.2*27.3 144 325 12G 1.5 5.2*40.8 173 390 12x 1.5 5.2*40.8 173 390 18G 1.5 5.2*61.8 259 668 24G 1.5 5.2*83 346 822
