Quick Details
Type: Bare
Application: Heating
Conductor Material: Aluminum
Conductor Type: Stranded
Insulation Material: PE
- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
Type: Bare
Application: Heating
Conductor Material: Aluminum
Conductor Type: Stranded
Insulation Material: PE
Delivery Detail: | Shipped in 10 days after payment |
---|
Product Description
specification

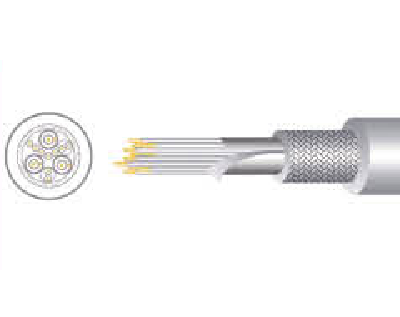

Construction designed according to VDE 0281 part 403 and part 404
Conductor: plain CU wires ,flexible
Insulation:Core insulation of PVC,compound type T12 according to VDE
0207 part 4
Steel wire can be attached
Sheath*:Sheath material of PVC,compound type TM2 according to VDE 0207
part 5 Sheath wall thickness: according to the table3
Rated voltage
H05VVH6 U0/U=300/500V
H07VVH6 U0/U=450/750V
NO.of cross section (n.*mm²) | aqqrpx.cable OD (mm*MM) | Copper weight(kg/km) | cable weight (kg/km) | |||||
H05VVH6-F | ||||||||
4G 0.75 | 4.2*12.6 | 29 | 100 | |||||
8G 0.75 | 4.2*23.2 | 58 | 178 | |||||
12G 0.75 | 4.2*33.8 | 86 | 265 | |||||
18G 0.75 | 4.2*50.2 | 130 | 385 | |||||
24G 0.75 | 4.2*65.6 | 172 | 492 | |||||
H05VVH6-F | ||||||||
4G 1 | 4.4*13.4 | 38 | 108 | |||||
5G 1 | 4.4*15.5 | 48 | 129 | |||||
8G 1 | 4.4*24.8 | 77 | 207 | |||||
8G 1 | 4.4*24.8 | 77 | 207 | |||||
12G 1 | 4.4*36.2 | 115 | 305 | |||||
18G 1 | 4.4*53.8 | 208 | 455 | |||||
24G 1 | 4.4*70.4 | 230 | 588 | |||||
H07VVH6-F | ||||||||
4G 1.5 | 5.2*14.5 | 58 | 135 | |||||
4x 1.5 | 5.2*14.5 | 58 | 135 | |||||
5G 1.5 | 5.2*17.5 | 72 | 162 | |||||
7G 1.5 | 5.2*25.3 | 101 | 234 | |||||
8G 1.5 | 5.2*25.3 | 115 | 257 | |||||
10G 1.5 | 5.2*27.3 | 144 | 325 | |||||
10x 1.5 | 5.2*27.3 | 144 | 325 | |||||
12G 1.5 | 5.2*40.8 | 173 | 390 | |||||
12x 1.5 | 5.2*40.8 | 173 | 390 | |||||
18G 1.5 | 5.2*61.8 | 259 | 668 | |||||
24G 1.5 | 5.2*83 | 346 | 822 |
